Guarding our tasks

Sep 15, 2017 | 3 minutes read
Share this:

Tags: Cafienne

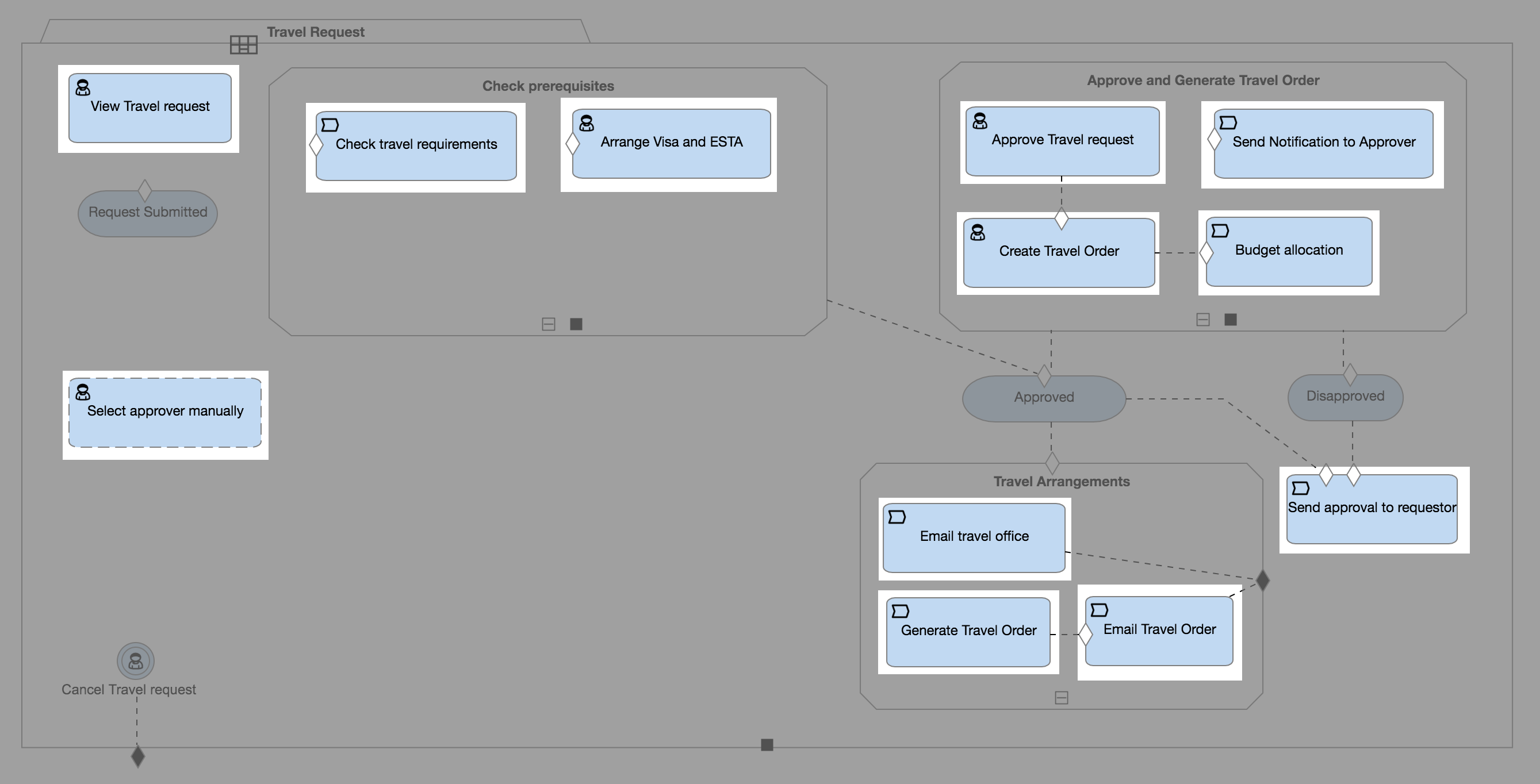

In last week’s post, we introduced some of the common symbols and terminology used in CMMN modeling. We found that the basic unit of work that make up a case model is called a Task. As shown below, many tasks may exist within a case model plan.

tasks

With no visible arrows or lines connecting one task to another, how exactly do we go from one task to the next and end up actually completing a case? We can use criteria called Sentries. These diamond-shaped icons set certain conditions and dependencies on a task.

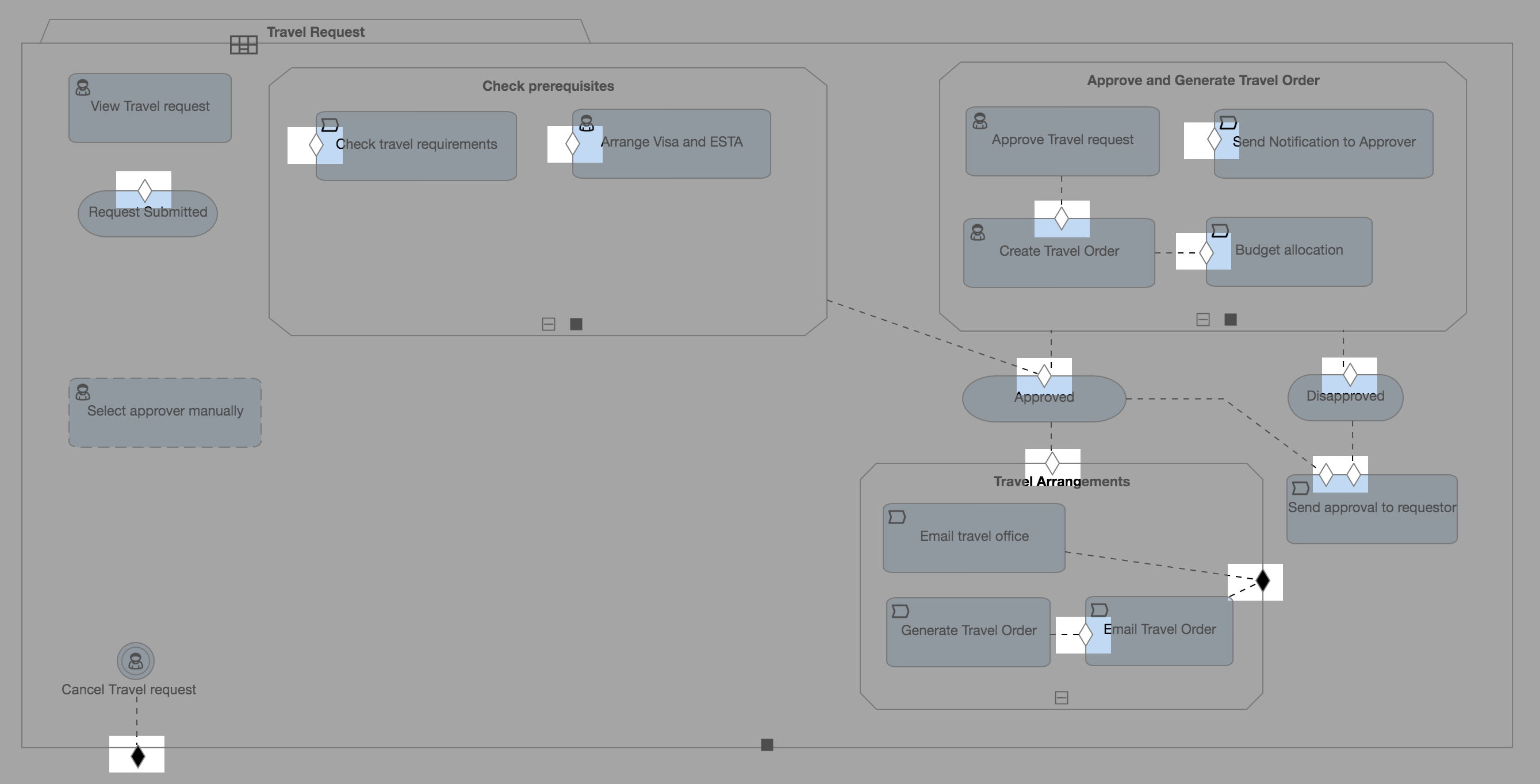

For example, all the sentries in our travel request case model example are highlighted below. As you can see, a sentry can be placed on a task or group of tasks. A task can even have more than one sentry.

sentry model

If a task has entry criteria that must be met before it is triggered, the sentry icon is white. entry sentry

And if the task has exit criteria, the sentry icon is solid black.
exit sentry

A sentry is triggered if an event happens and/or if a certain condition is met. In the settings window of a sentry, we can specify when a sentry should be triggered. A sentry can be triggered either ON an event or IF an event occurs. We can set this criteria in the sentry settings menu in Cafienne.

If we want to have a sentry triggered ON an event, we specify this in the OnPart section of the sentry settings:
sentry properties on-part

If we want to have a sentry triggered IF a certain condition is met, we specify this in the IfPart section of the sentry settings:
sentry properties if-part

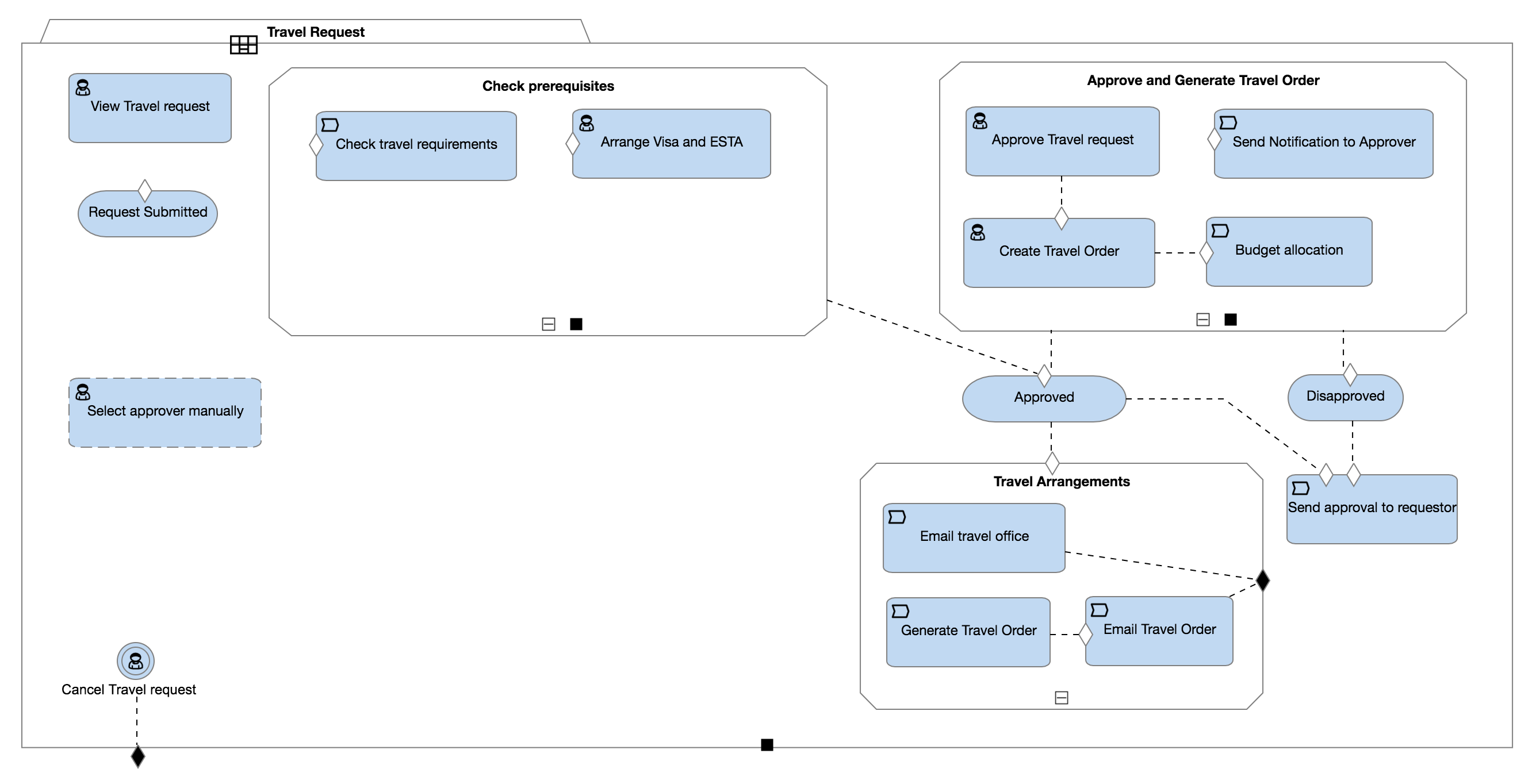

Let’s take a look at some of the sentries in our original travel request case example. example travel request model

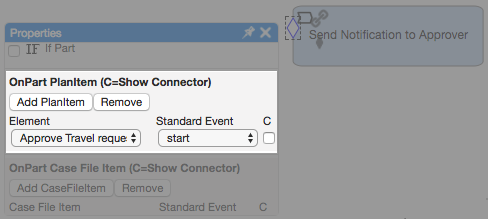

We have a process task called “Send Notification to Approver” (located in the top right) that has a sentry attached with entry criteria. If we click and open the settings for this sentry, we can see that it has event criteria specified in the OnPart.

sentry properties on-part example

These settings indicate that the “Send Notification to Approver” task will be executed ON the start of “Approve Travel Request” task.

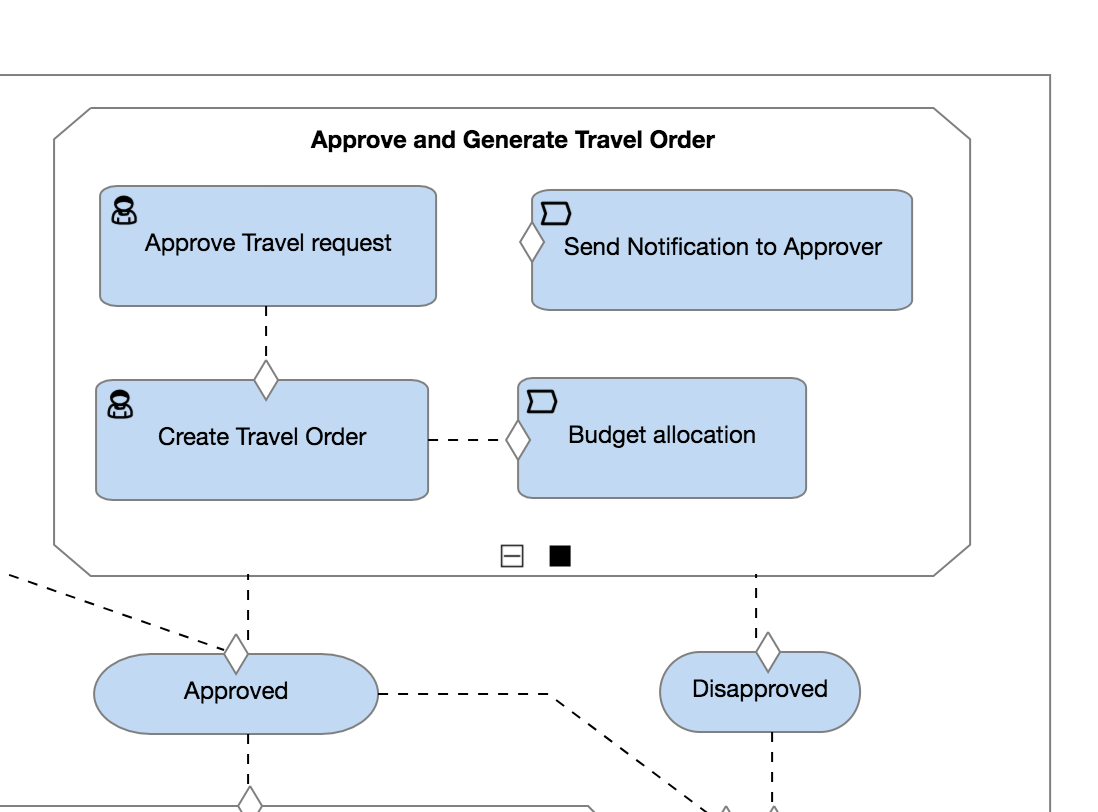

If we look again at our example case, we have a human task called “Create Travel Order” (located in the top right) with sentry attached with entry criteria.

example travel request model

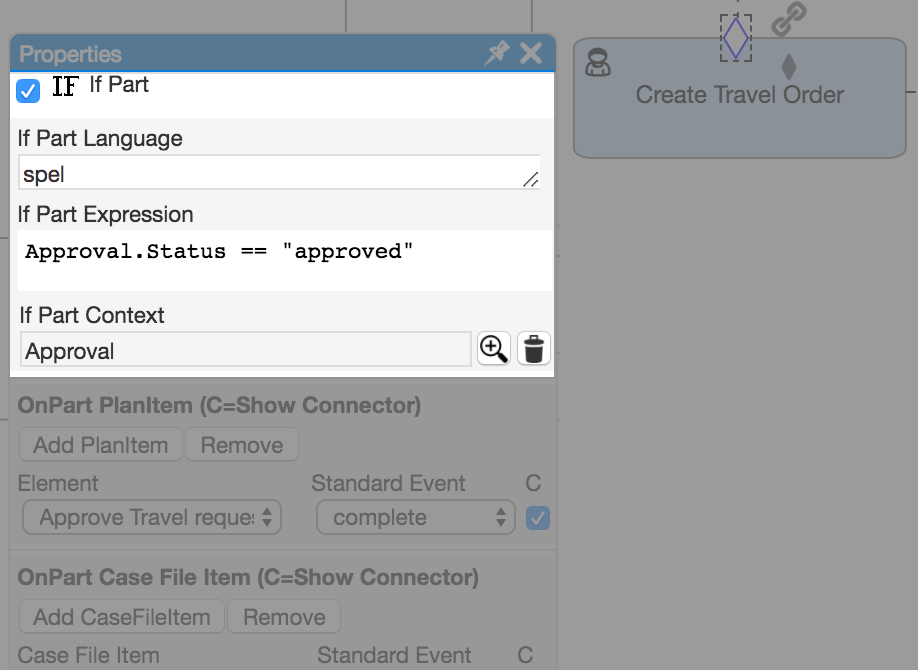

When we look at the settings for this sentry, we can see that it has event criteria specified in the If Part. This indicates that IF the “Approval” has the status “approved”, then the “Create Travel Order” task will be triggered.

sentry properties if-part example

Next week, we’ll continue to build our knowledge of CMMN terminology by exploring Milestones and Event Listeners and how they help us build complex, but robust, case models in Cafienne.

Han van Oostende, DevOps Engineer
